LD 8 DQN Air Cargo Containers

Leading ULD containers offering lowest total cost of ownership!

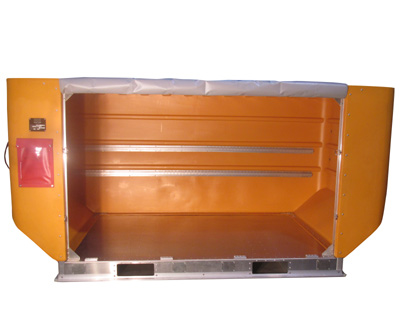

Product gallery
Granger Aerospace LD 8 Air Cargo Container
LD 8, LD-8, Granger LD 8, Granger Aerospace LD 8, Granger Aerospace ULD8

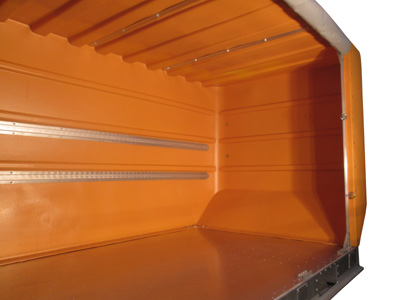

Interior Of LD 8, Granger Aerospace LD 8
Granger Aerospace LD 8, LD 8, Granger Aerospace Products, Air Cargo Container
Air Cargo Containers, ULD 2, LD 2 Air Cargo, Granger Aerospace
Click on any of the thumbnail images above to display the larger image in the LD 8 Air Cargo Container Gallery.



LD 8 DQN Technical Specifications

Technical Specifications
TSO   N/A
IATA   LD-8/DQN
SPEC.   AS 1677
Granger Aerospace P/N   GA2-0108-3
Base size 2438 mm x 1534 mm 96.0 in x 60.4 in
Height 1625 mm 64 in
Roof length 3175 mm 125 in
Max. gross weight 2449 kg 5400 lb
Internal volume 6.4 cu m 224.5 cu. ft
External volume 7.5 cu m 265 cu ft
Door opening 2254 mm x 1462 mm 88.75 in x 57.56 in
Tare weight from 169.6 kg 374 lb

LD 8 DQN Dimensional Drawings

Click below to download LD 8 DQN Dimensional PDF
LD 8 Dimensions, LD 8 Air Cargo Container Dimensions, DQN dimensions

LD 8 DQN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 8 Air Cargo Container Links

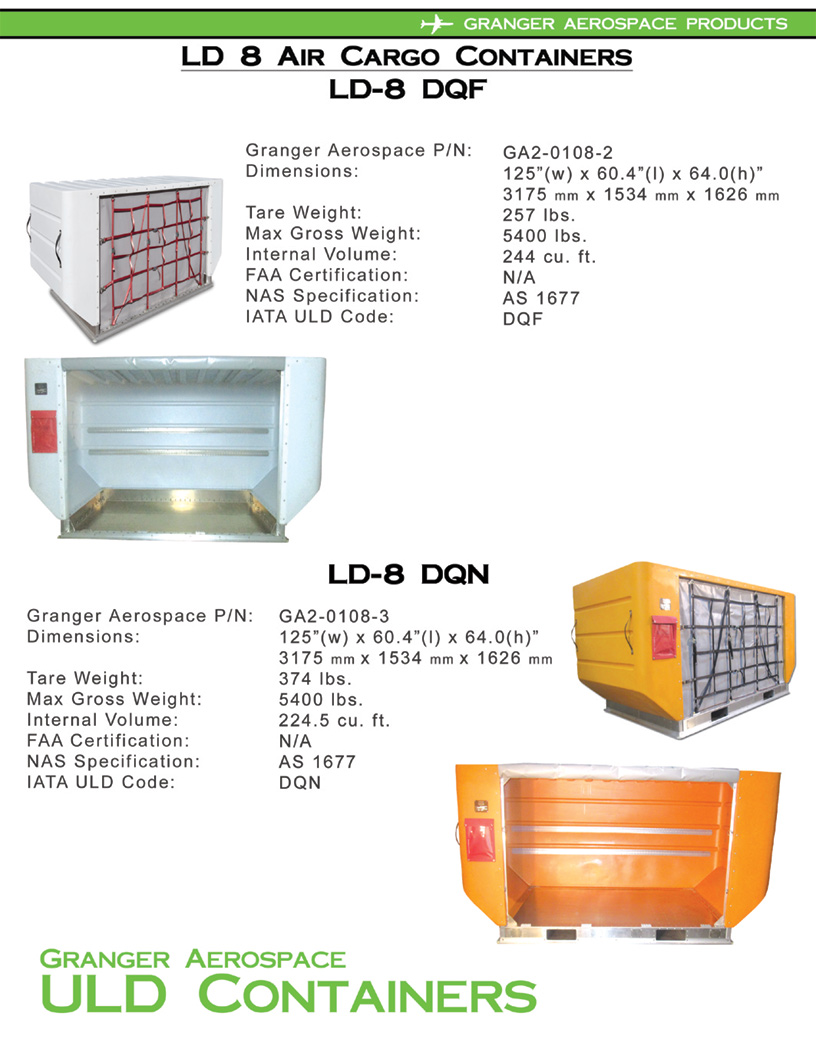

    LD 8 DQF/DQN Information

    Click below to download LD 8 DQN Technical PDF
    LD 8 Specifications, Dimensions, LD 8 Air Cargo Container Dimensions, DQF Dimensions, DQN dimensions
